Jupiter PGM-19 SM-78

Before restoration the Jupiter was located in the Rocket Garden at C.C.A.F.S. American Aero was tasked with taking it down, transporting it to our restoration facility and restoring it before returning it for display.

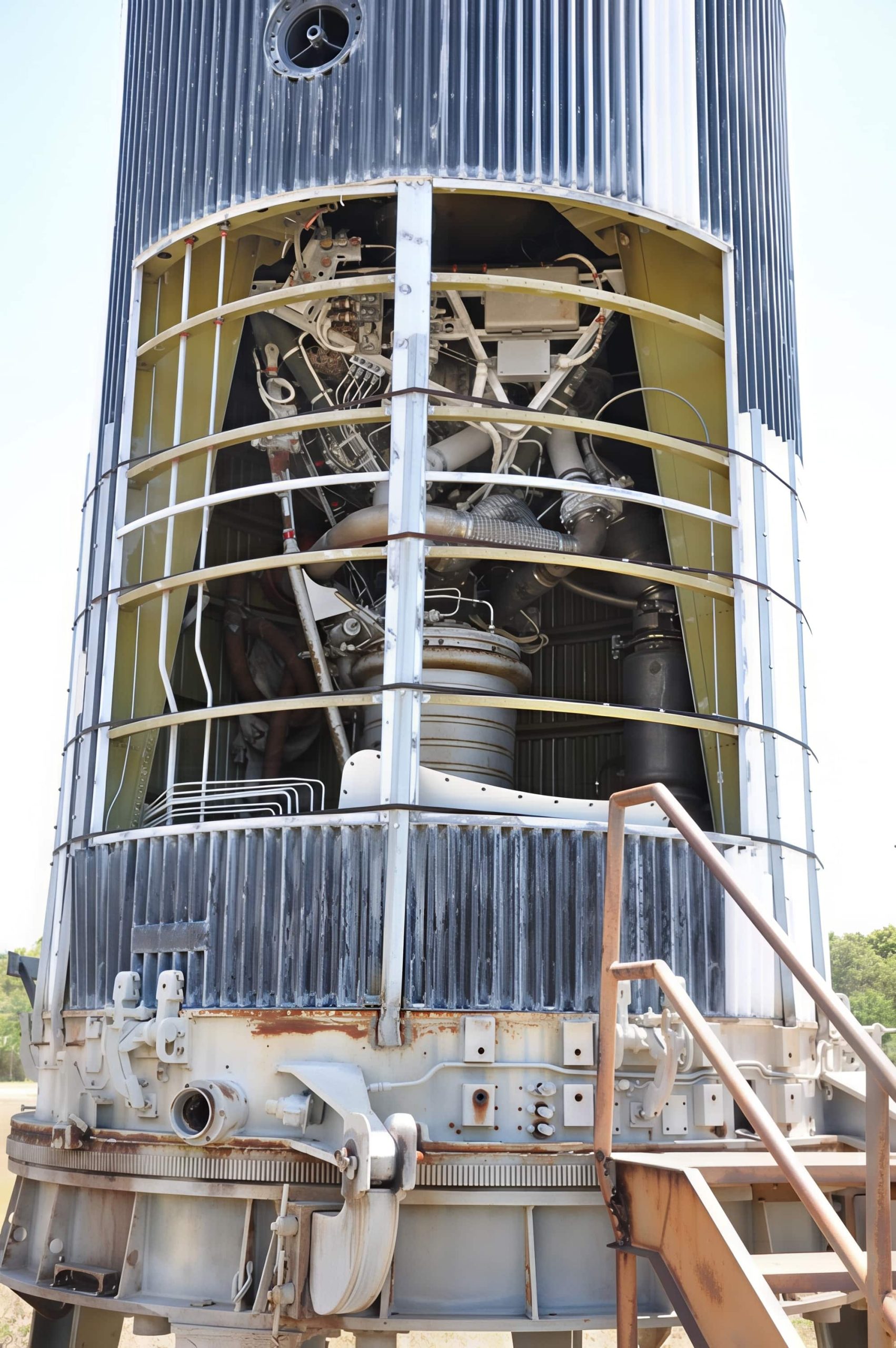

Jupiter PGM-19 SM-78 while located in the Rocket Garden The Jupiter was standing vertical on its launch table before restoration

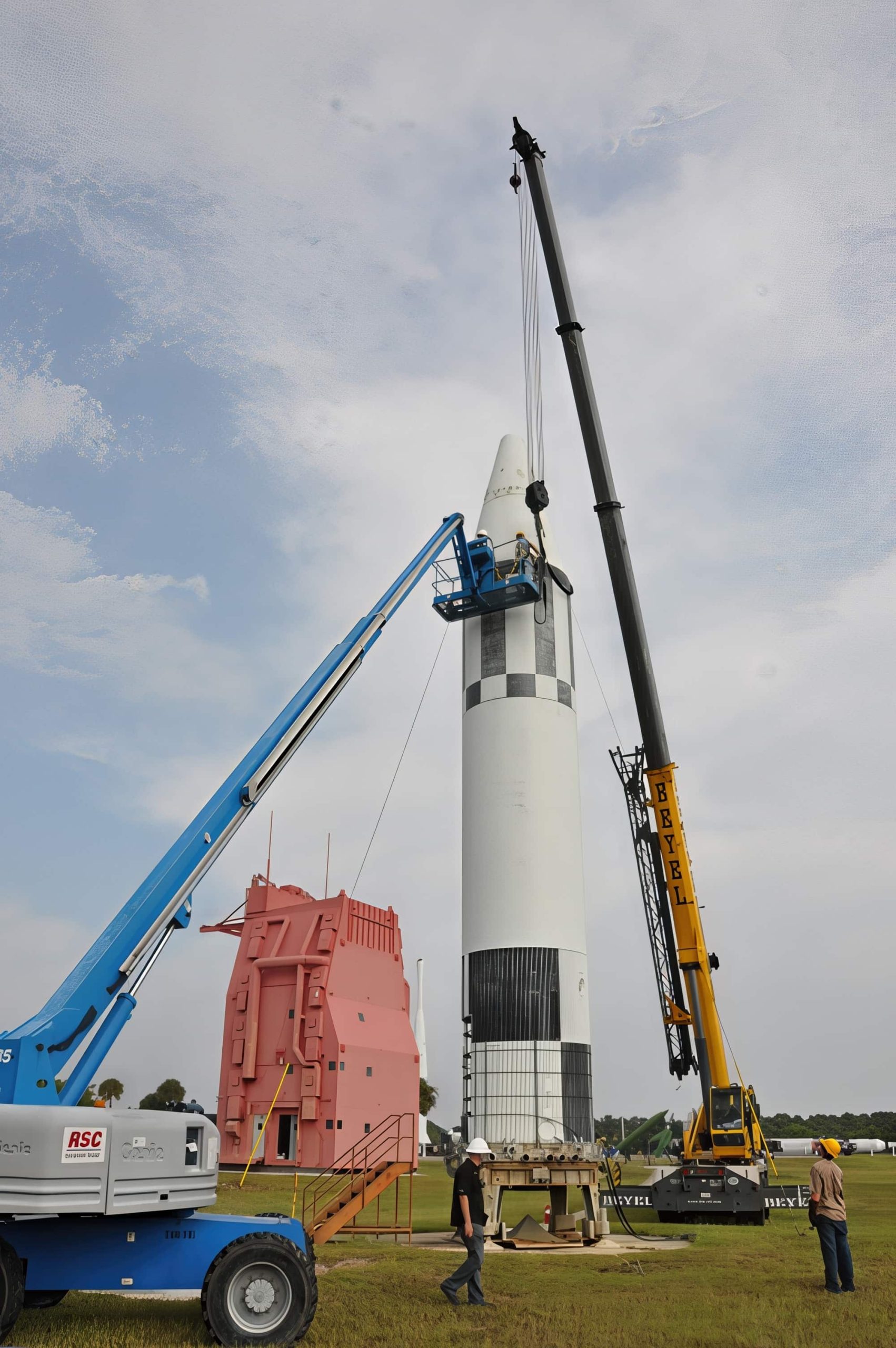

Jupiter Take Down

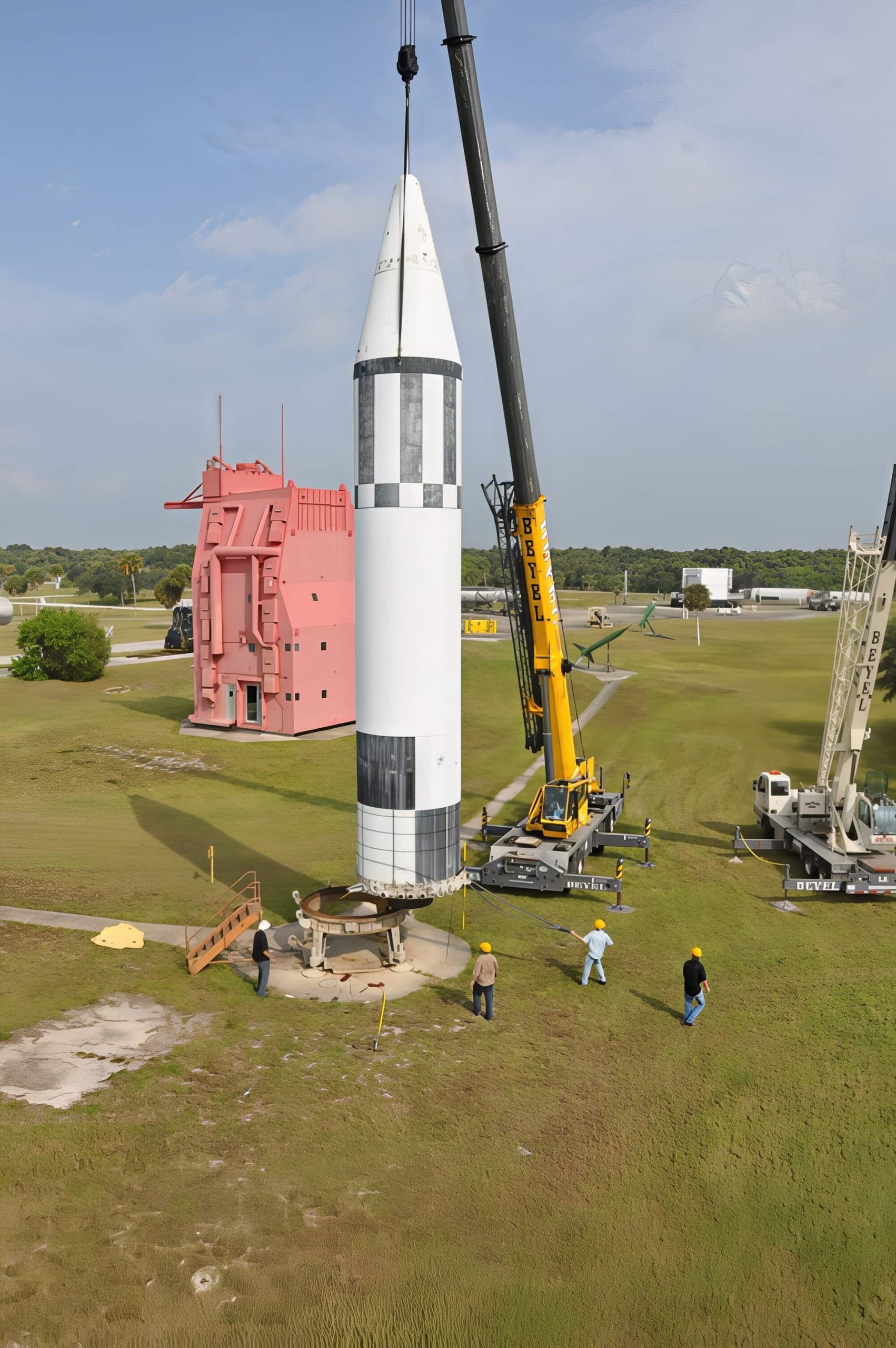

Removal from launch table

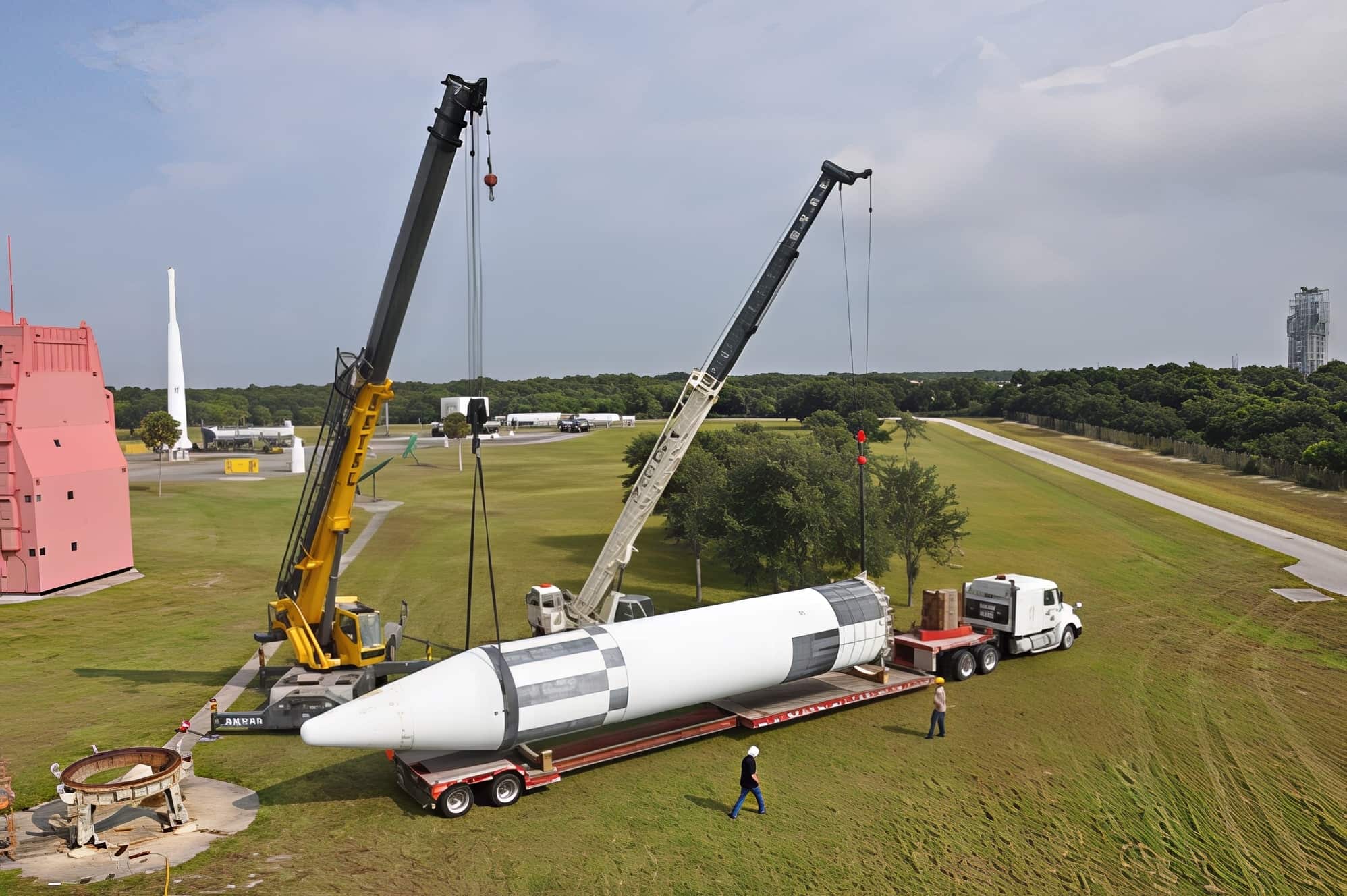

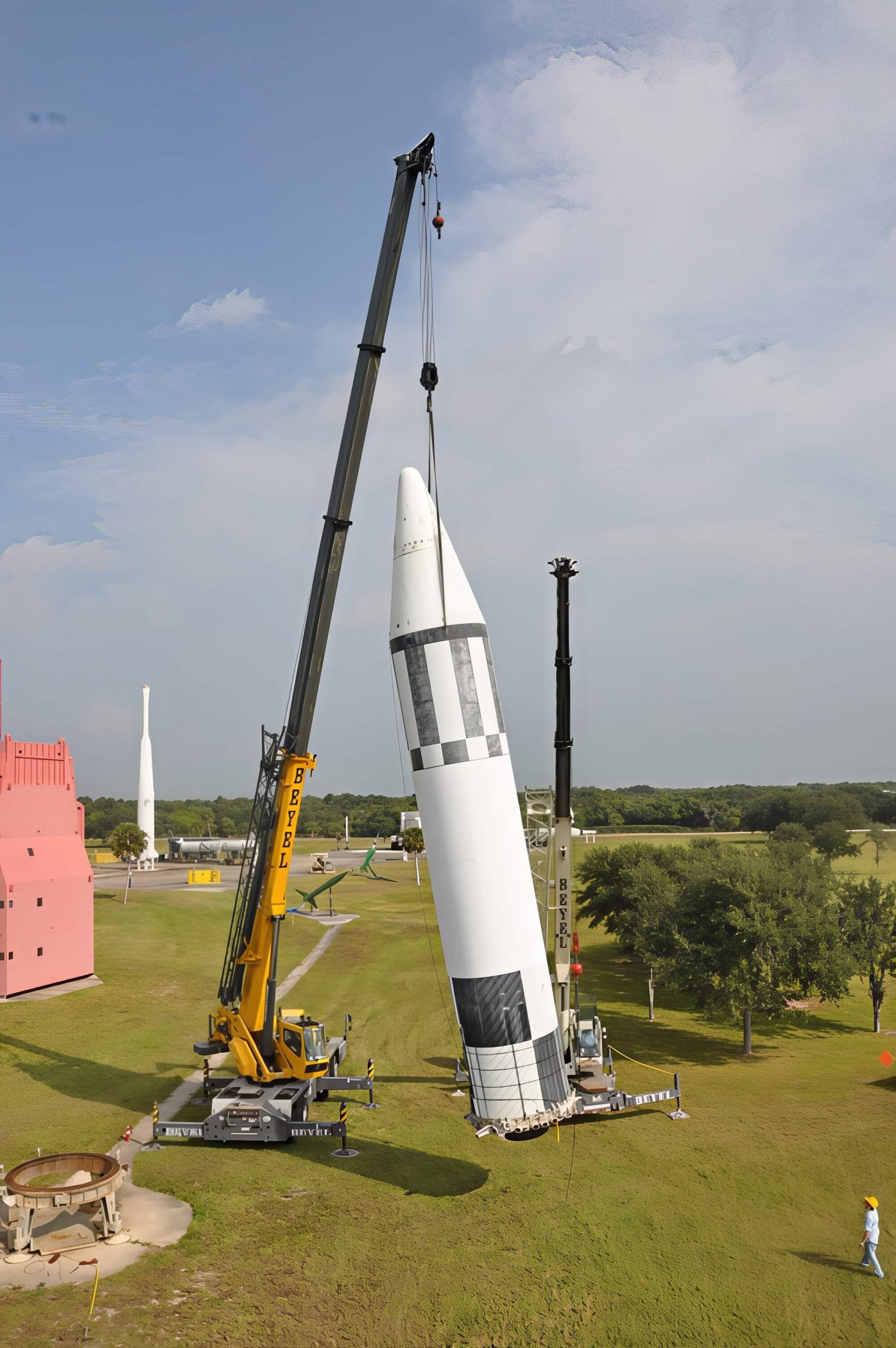

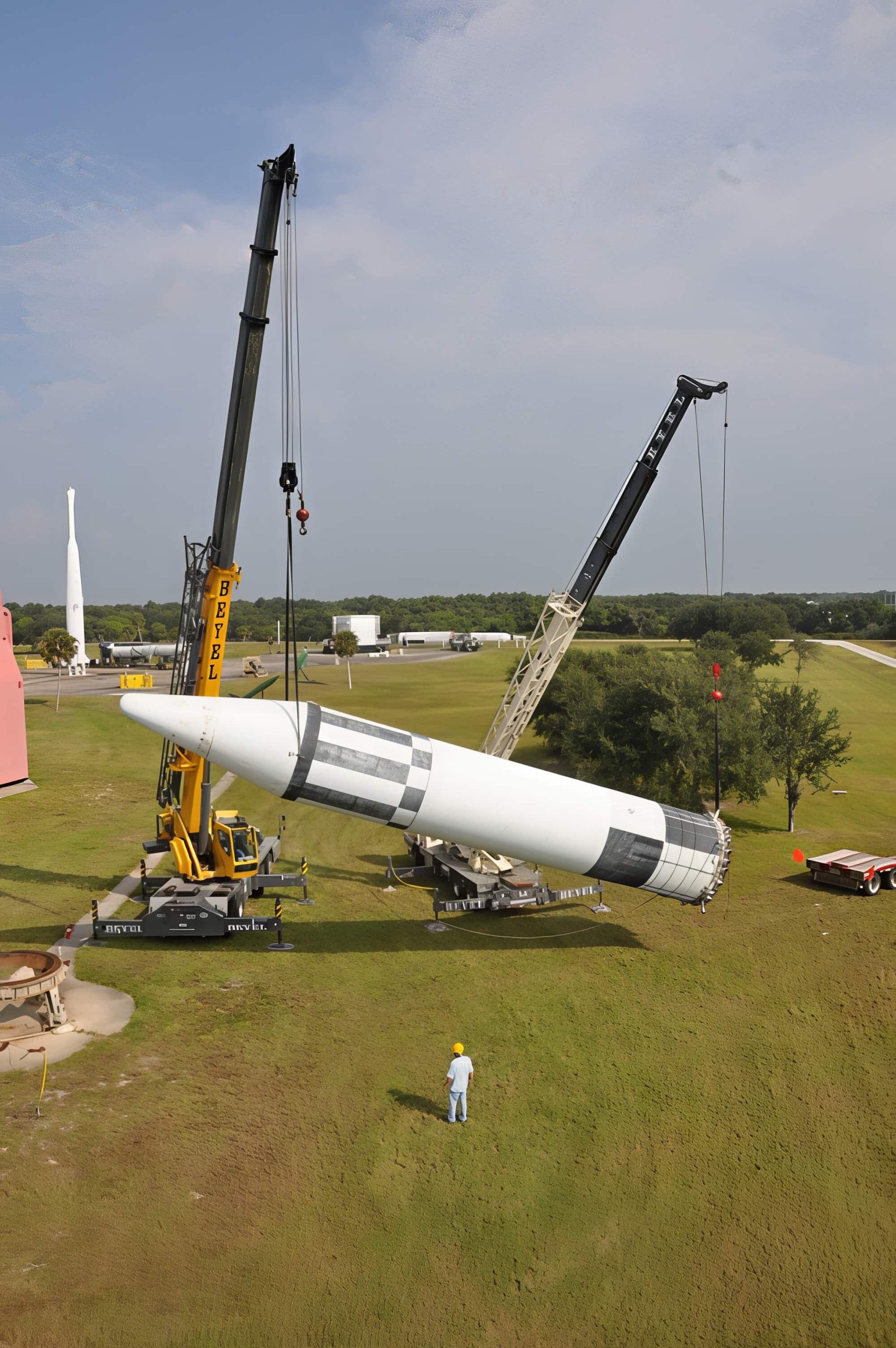

Two Crane Lift
Prep For Loading

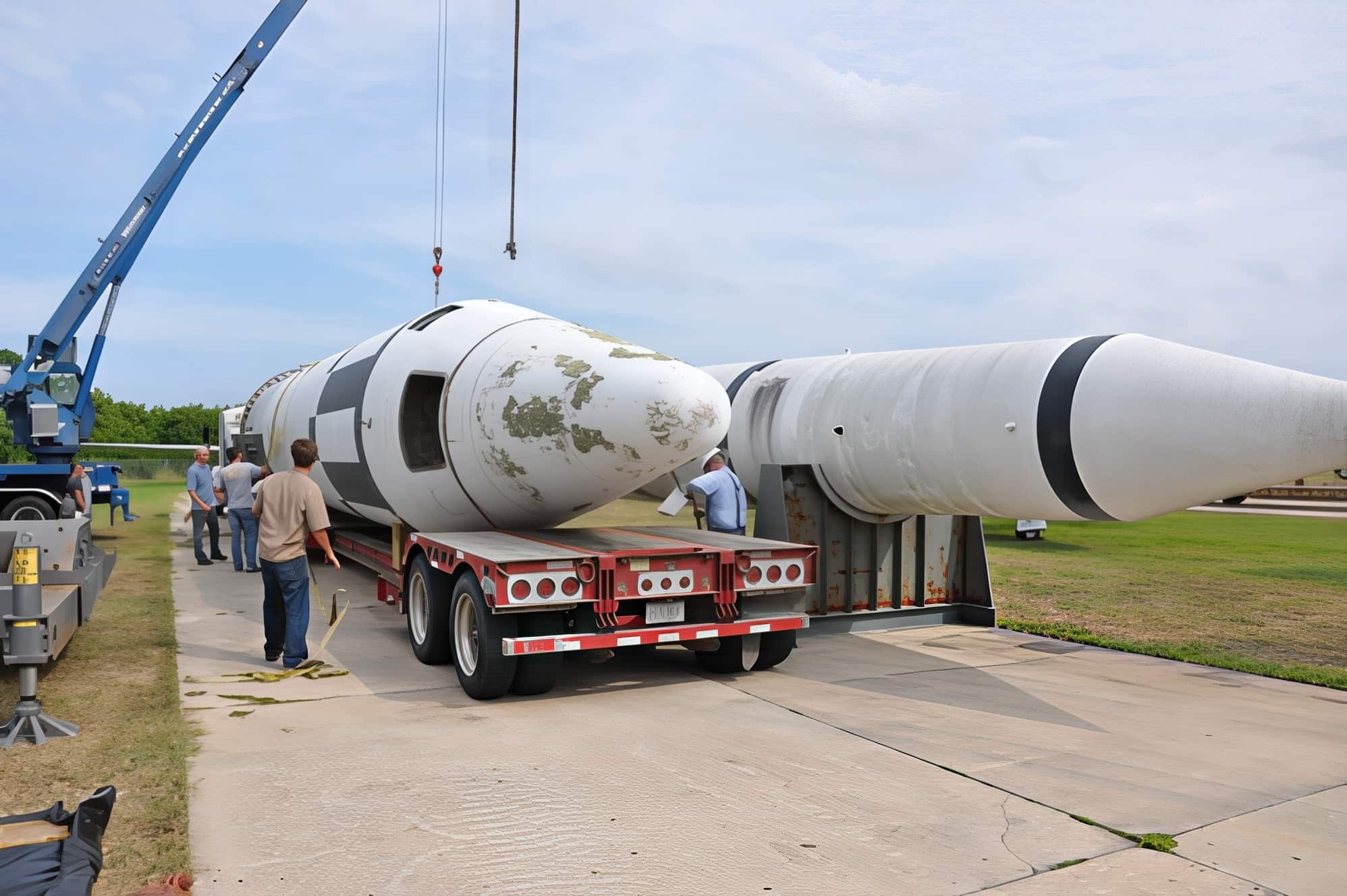

Loading for transport
Arrival at American Aero Both the Jupiter and Redstone were delivered by truck to American Aero for restoration

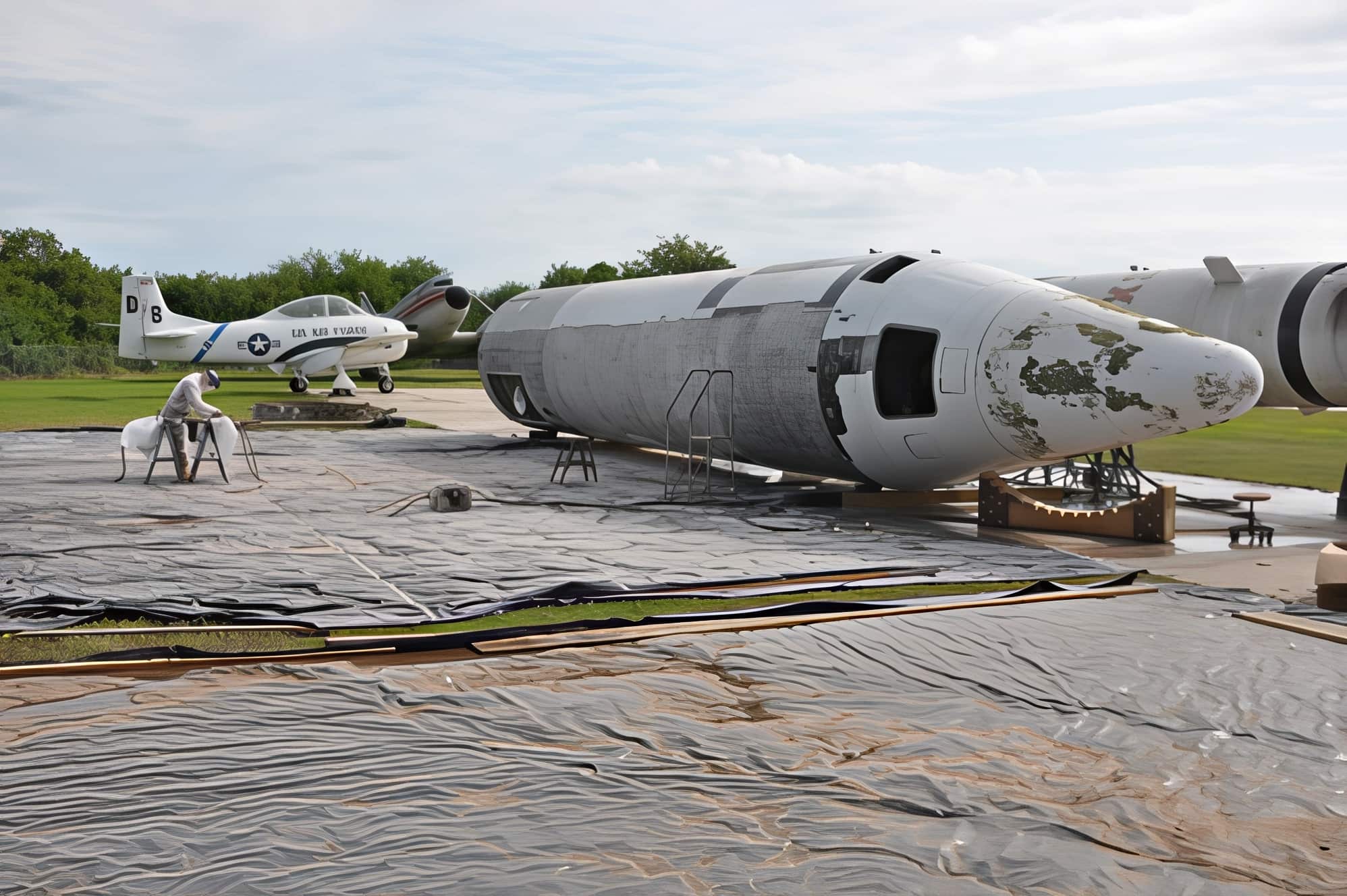

Hi Pressure Water Blast Reservoirs were built to contain residue left from blasting the missiles

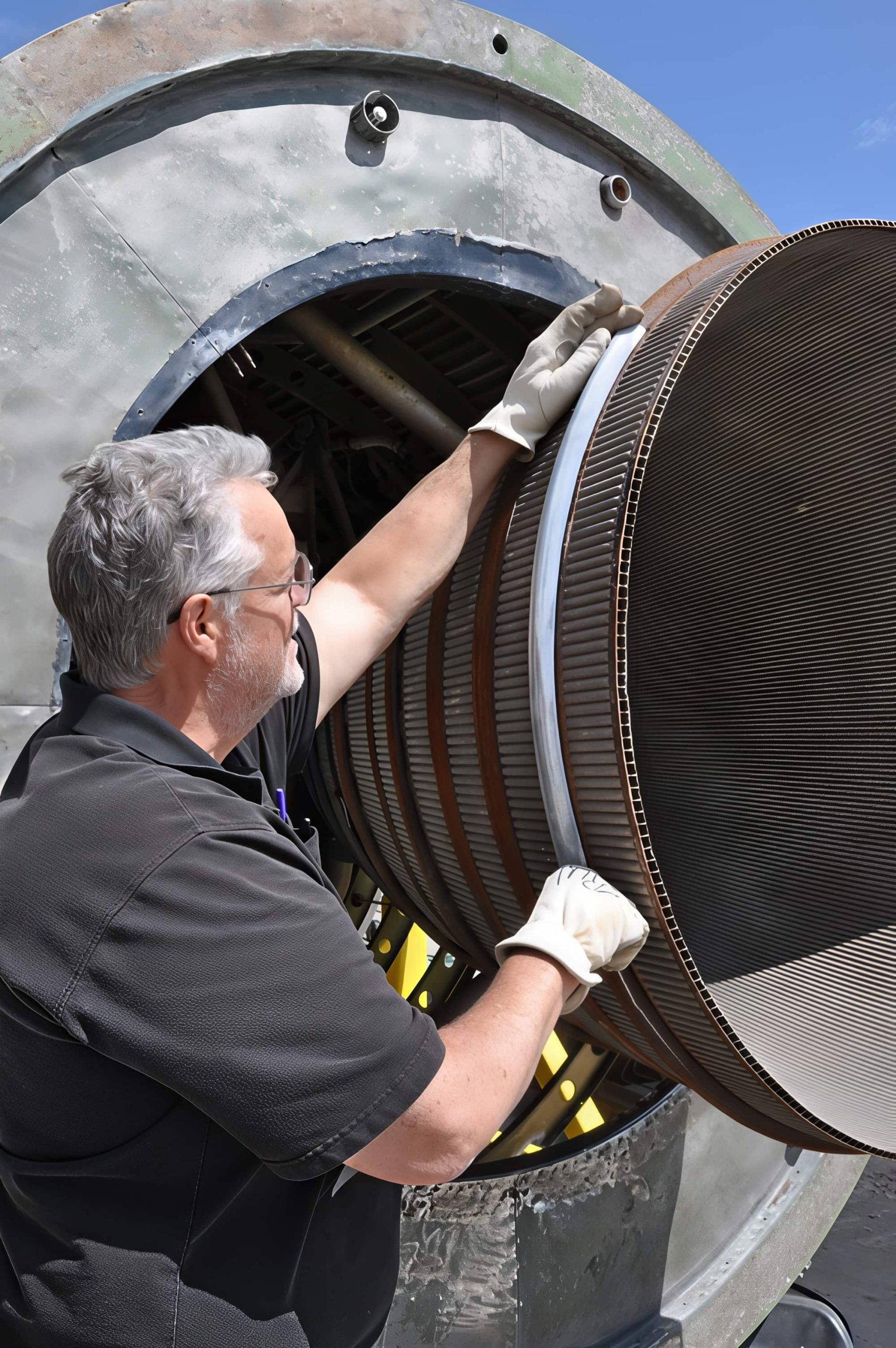

Reconstruction of the engine bell Tom Walker along with Linda Tam were instrumental in the restoration of the deteriated sheetmetal of the Jupiter and Redstone

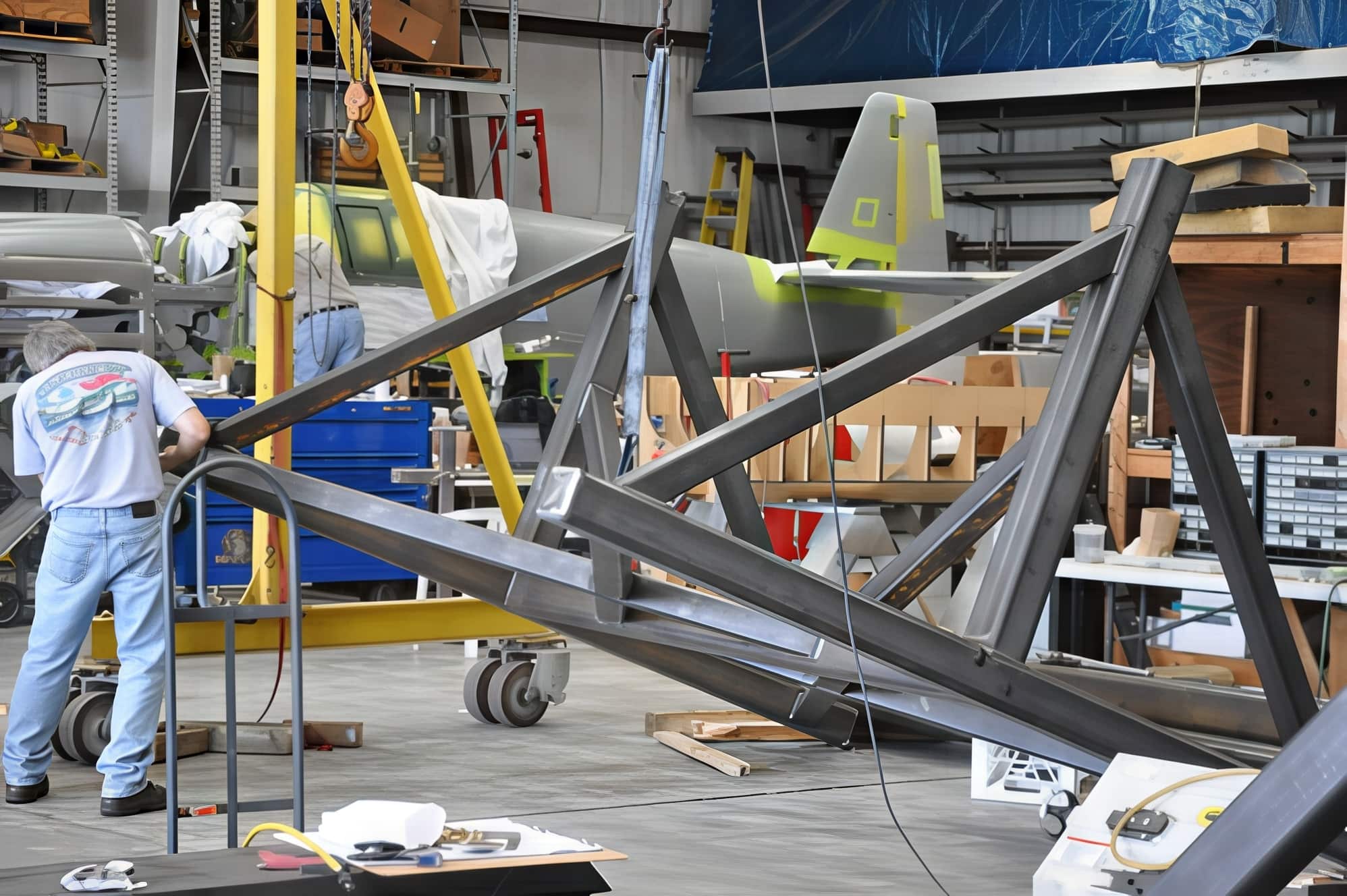

Jupiter display fixture The Jupiter needed to be displayed on a rolling fixture with in the hangar, American Aero designed and fabricated a fixture that was movable and look as if it was a work platform

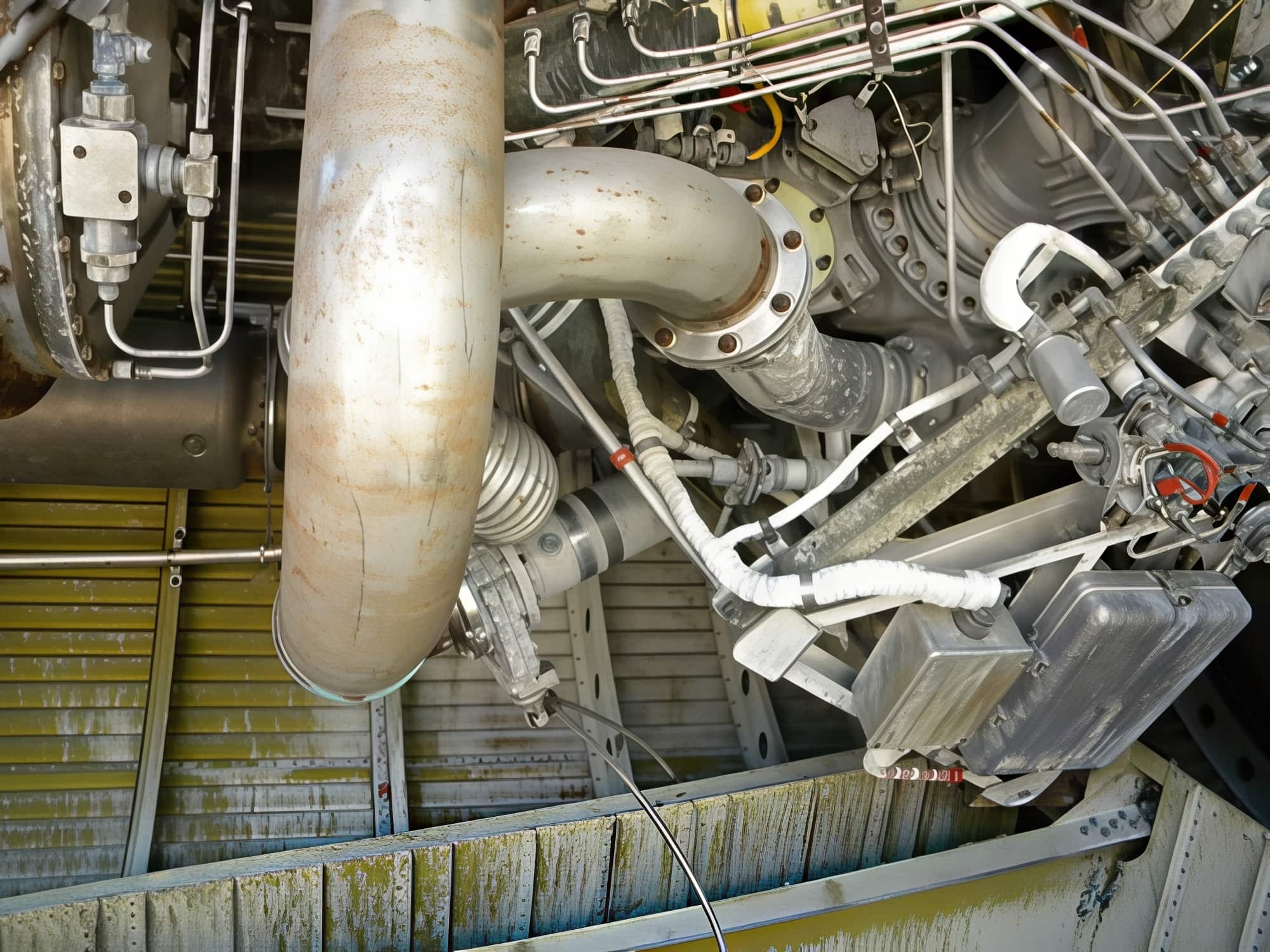

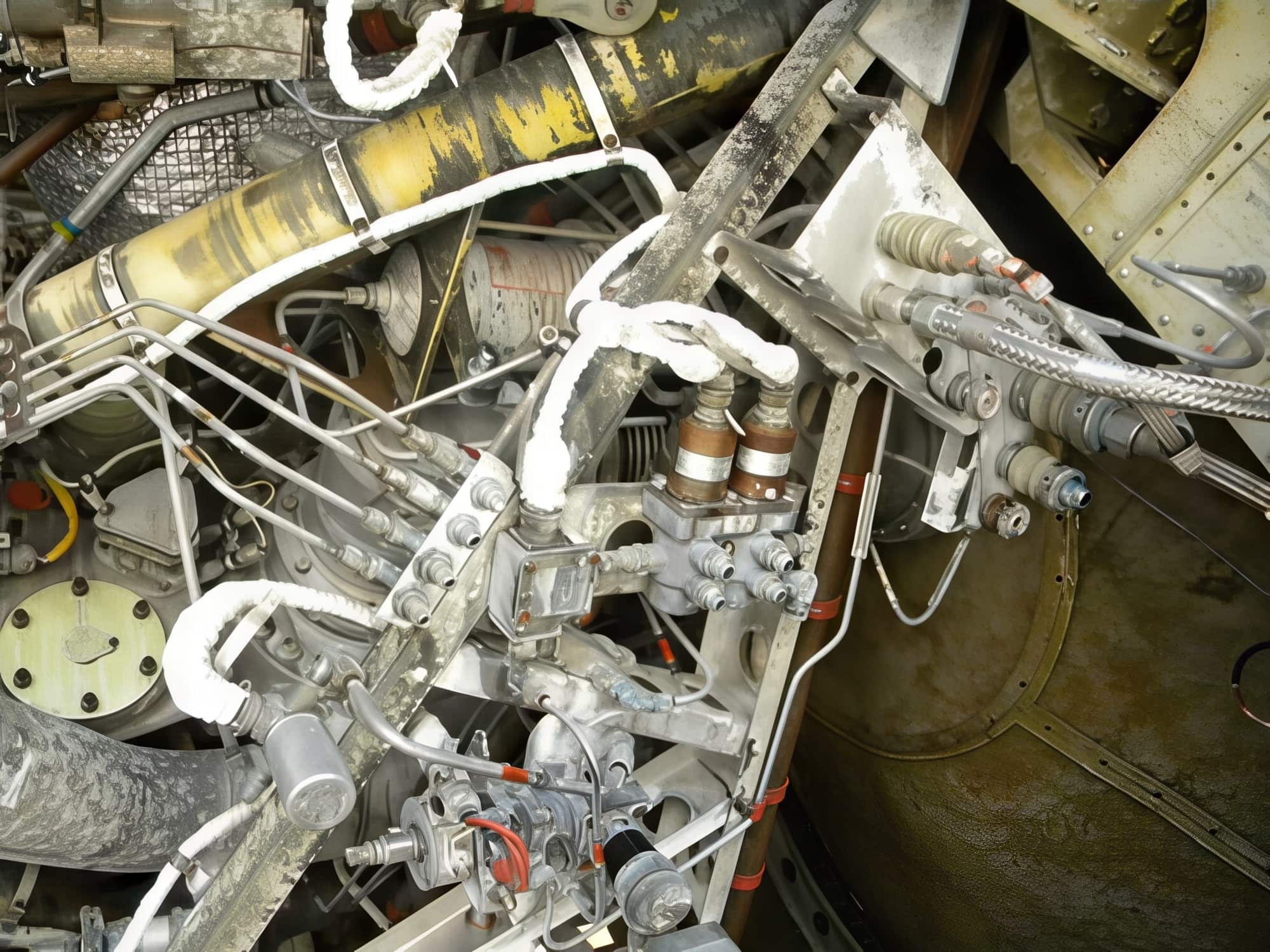

Restoration of engine The rocket engine of the Jupiter was severely damaged by the elements of outdoor display and other issues

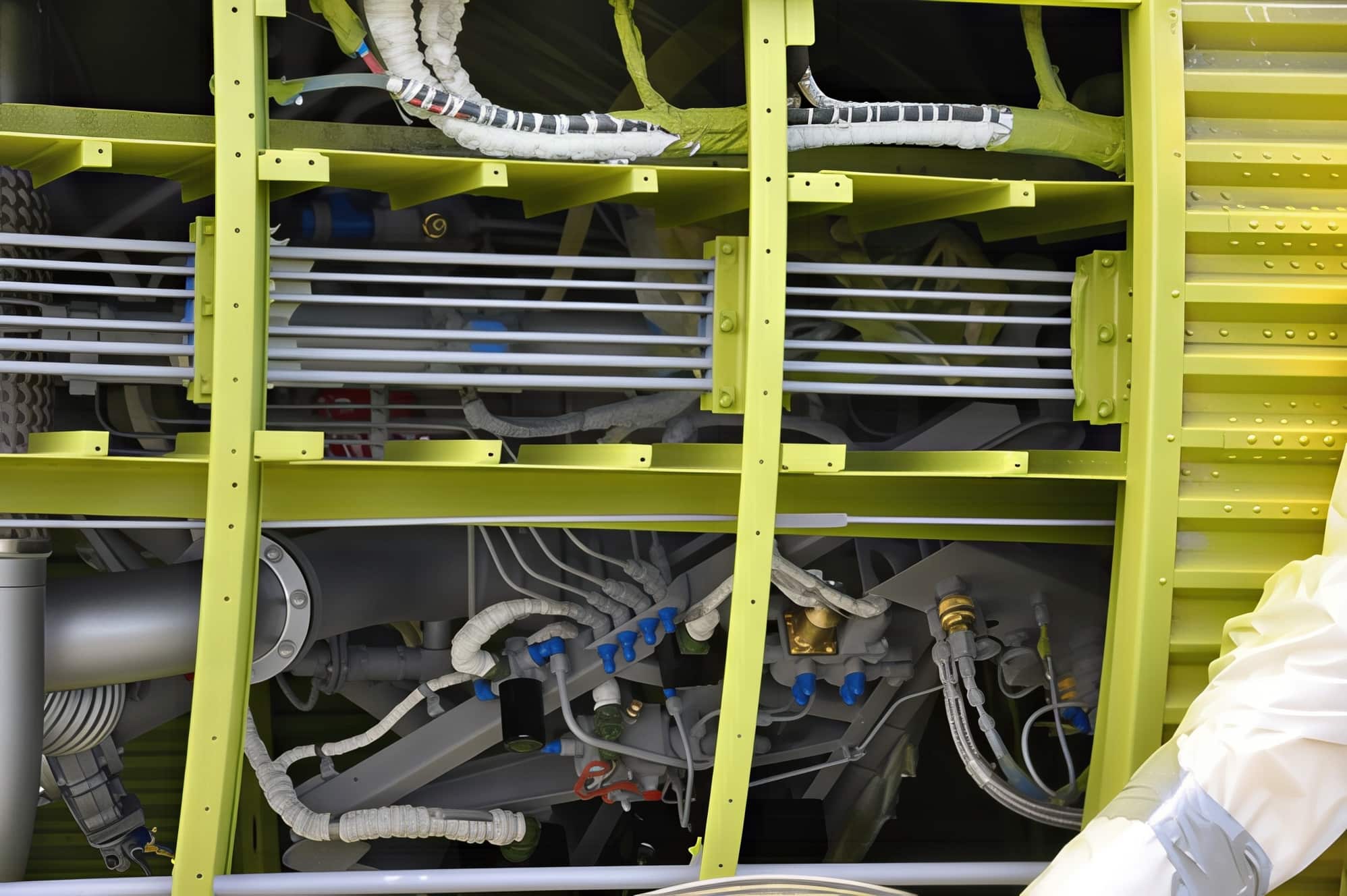

Engine Restoration

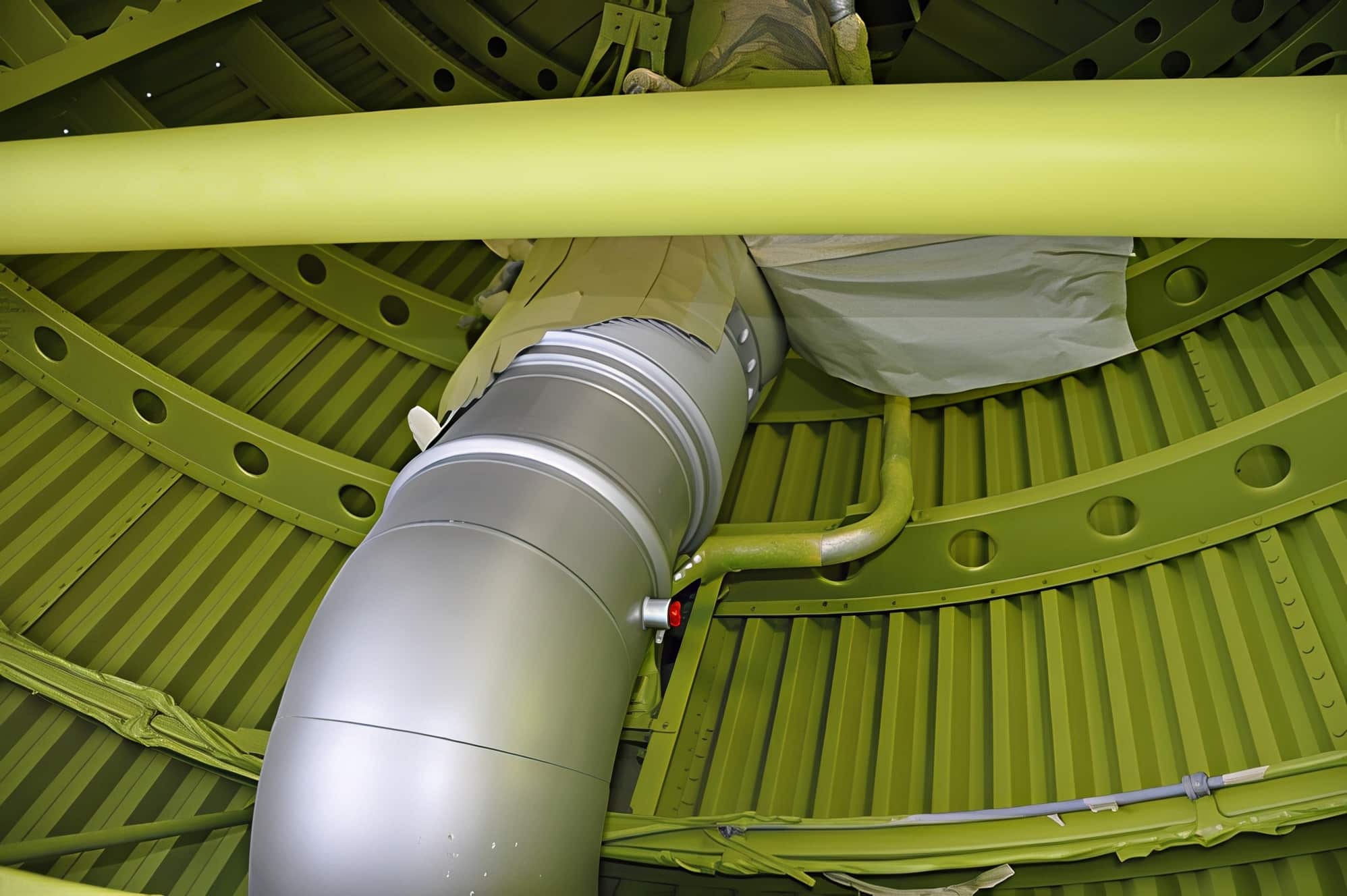

Engine area cleaned and preserved
Engine Restoration

Restoration
